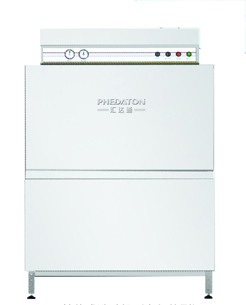

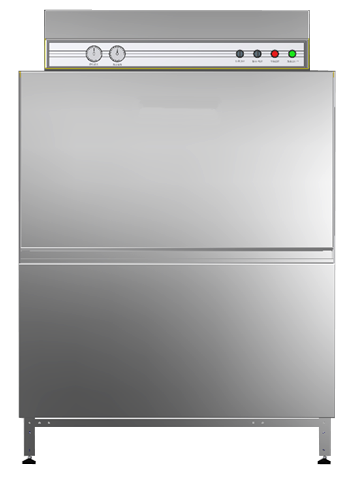

A20E Rack Conveyor Dishwasher
Product Specification
|
A20E |
Dimensions |
1080*720*1550mm |
|
The entrance |
515*435mm |
|
|
The exit |
515*435mm |
|
|
Wash-rack size |
500*500*100mm |
|
|
Washing capacity |
200 racks/hour |
|
|
cleaning cylinder capacity |
105 L |
|
|
Washing temperature |
55-60℃ |
|
|
Spray temperature |
80-90℃ |
|
|
Voltage |
380v/50/60Hz |
|
|
Input water pressure |
0.2-0.6MPa |
|
|
Total power |
46.7 KW |
|
|
Height when open machine |
1860 mm |
|
|
Net weight |
185 KGS |
|
|
Optional Spare Parts |
entrance table, exit table, spray |
|
|
washing module (optional) |
Dimention: 800*720*1350mm |
|
|
Capacity: 160racks/hour |
||
|
Power: 10.5KW |
||
|
Dryer (optional) |
Dimention: 800*720*1850mm |
|
|
Power: 12.5KW |
||
|
Heat Recovery System (optional) |
Energy saving 20% |
Remarks：Heat recovery system is optional for all dishwashers, and it can reduces energy consumption significantly
Product Features
Product Advantages
·High quality stainless steel material
·High precision products with CNC bending forming
·Assembled cleaning spray arm and nozzles, easy to disassemble and clean
·Automatically close the outlet when turn off the door, convenient and practical
·Automatic water system and temperature control system, easy to operate
Product Features
·Free of dead corner in washing with oval wash range
·Demountable large capacity self-piercing stainless steel sieve plate and large deep sieve basket
·Stainless steel pump and impeller, and pump inlet equipped with filter sieve components
·Automatic door switch lock function. With motor overload protection and manual reset
·Built-in detergent dispenser to control signal output
·Automatic temperature control and automatic switch off of lacking water design
·Built-in heating water tank running at low power to reduce heat loss
